ABAP 自定义附件上传和下载

自定义附件上传和下载

上传附件

事务码：SMW0

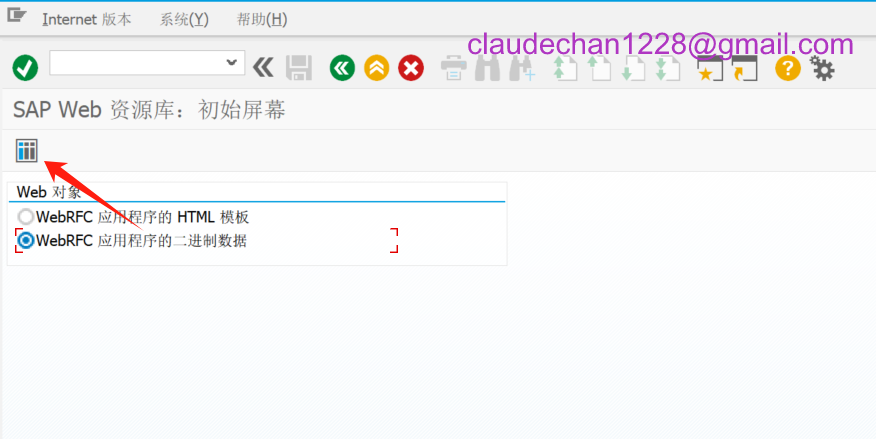

image-20241202201548715

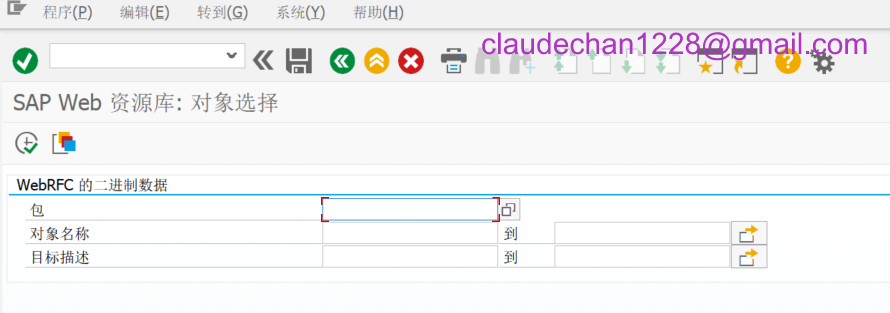

image-20241202201606954

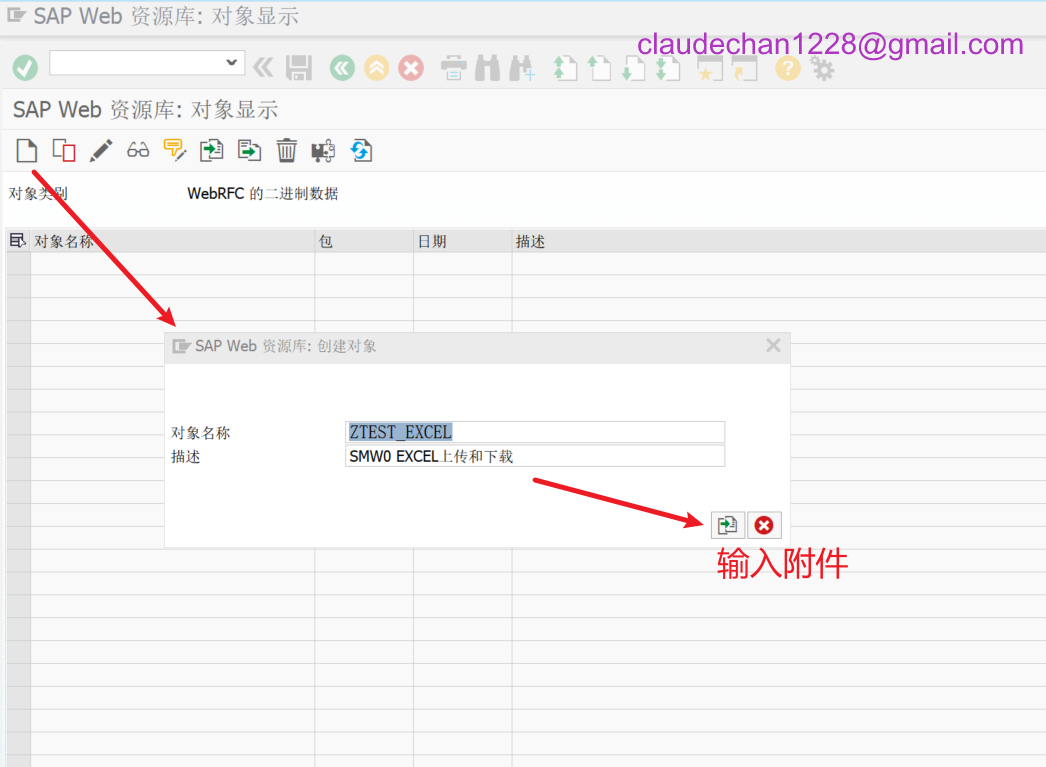

image-20241202202028778

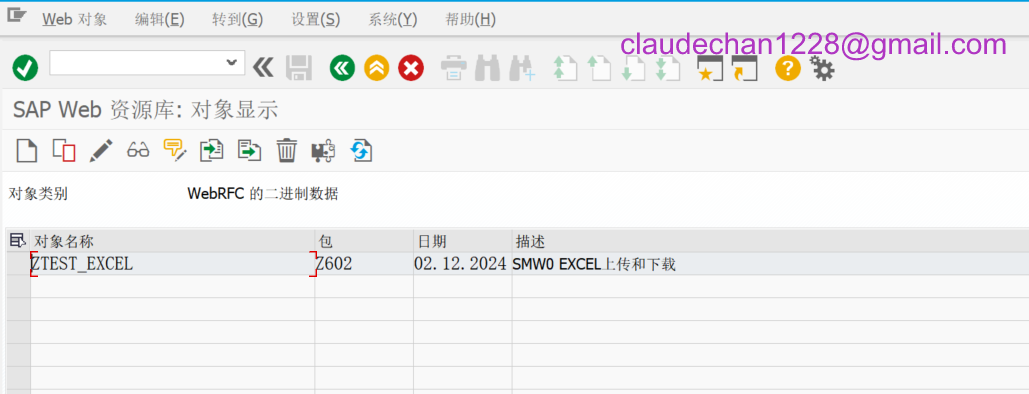

image-20241202202044228

报错

如SMW0配置中没有上传的文件的类型会报出如下错误：

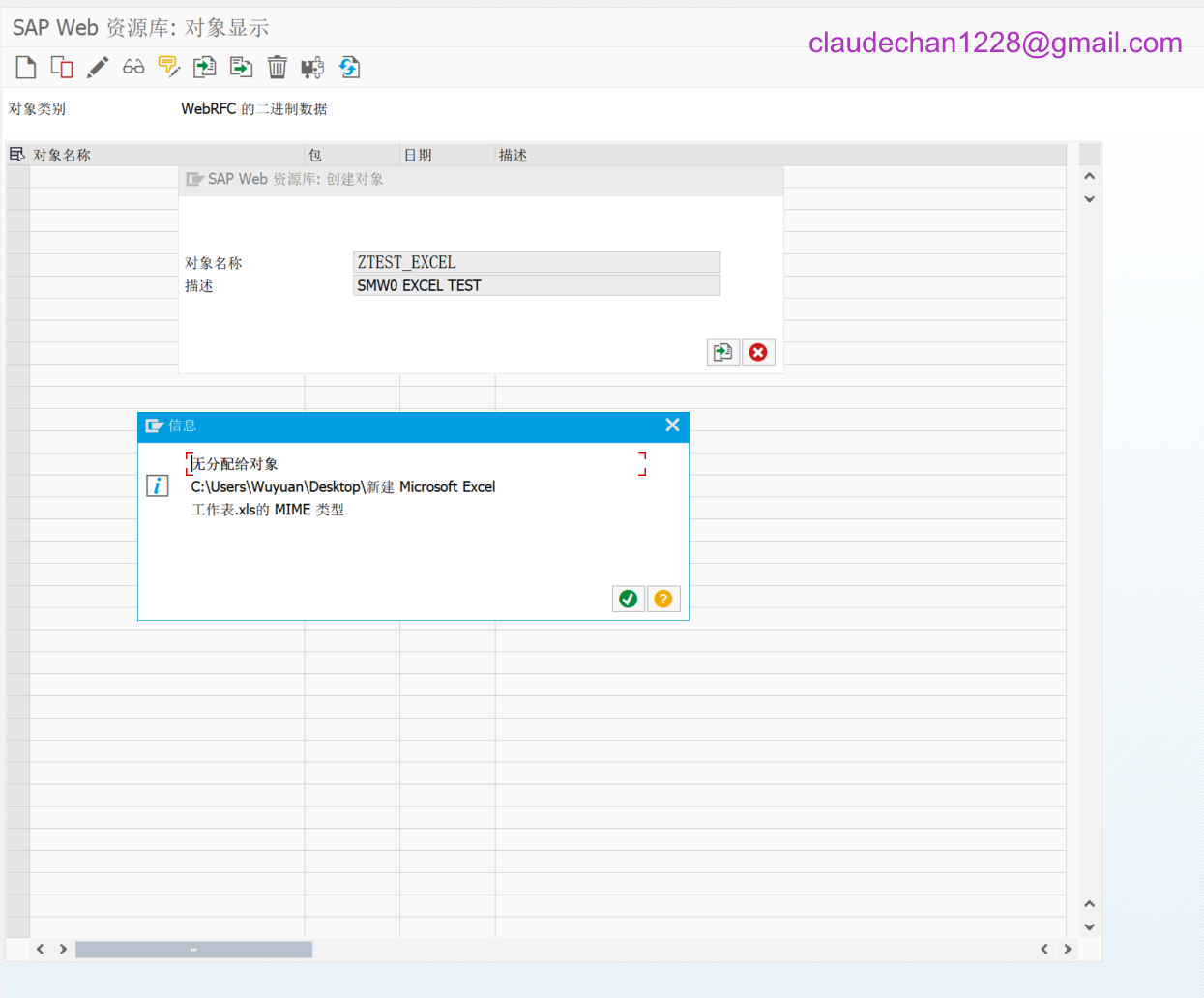

image-20241202201701659

通过配置对应文件的类型解决：

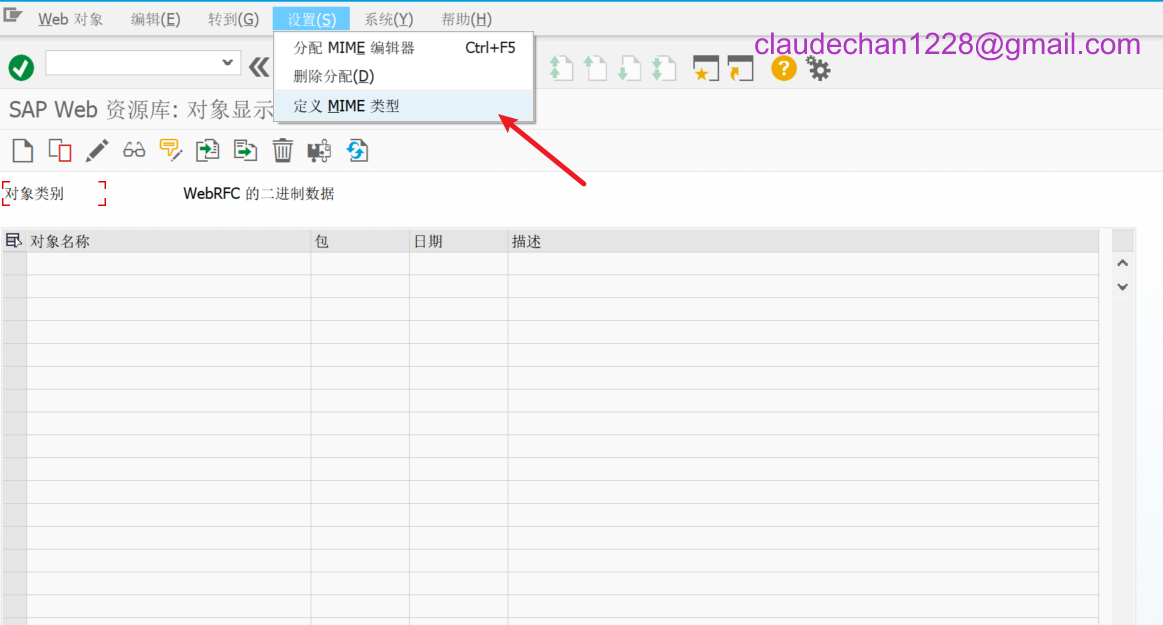

image-20241202201823173

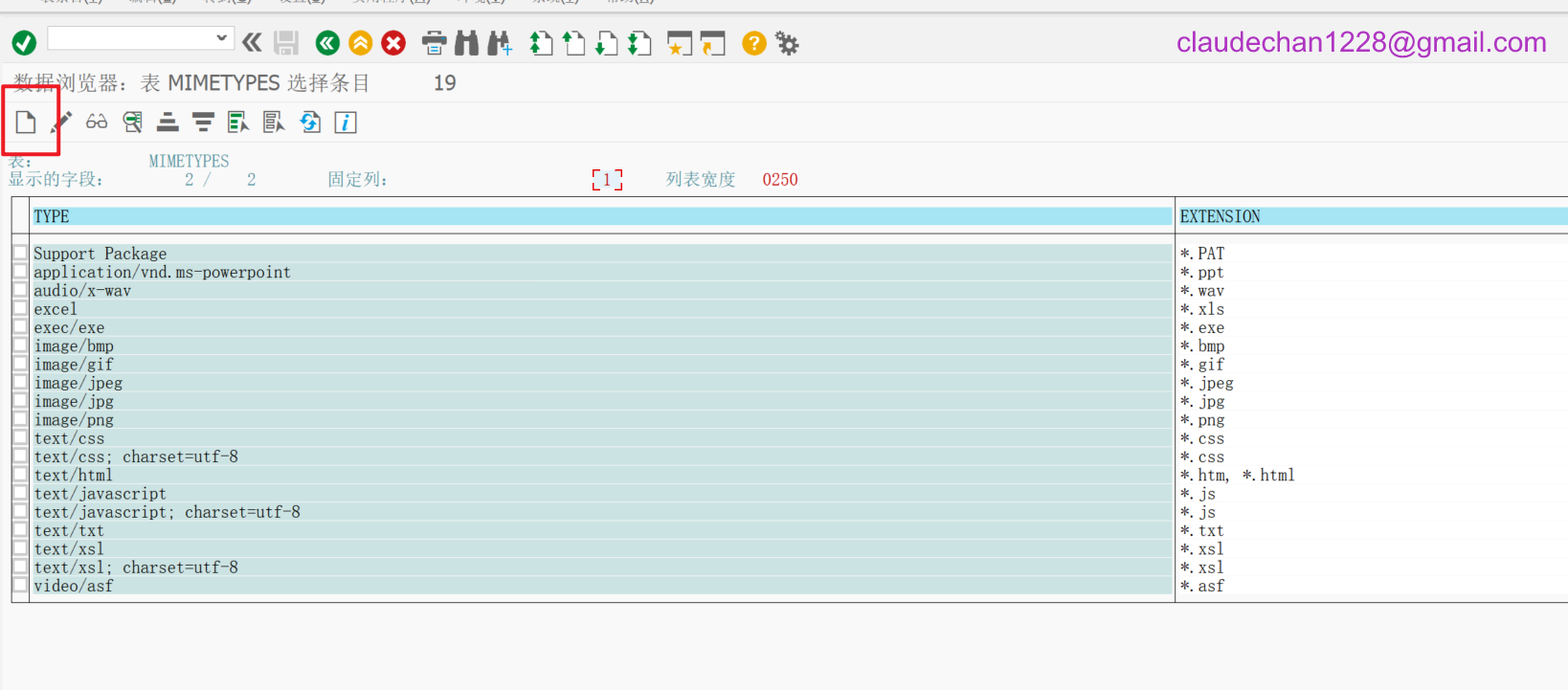

image-20241202201843472

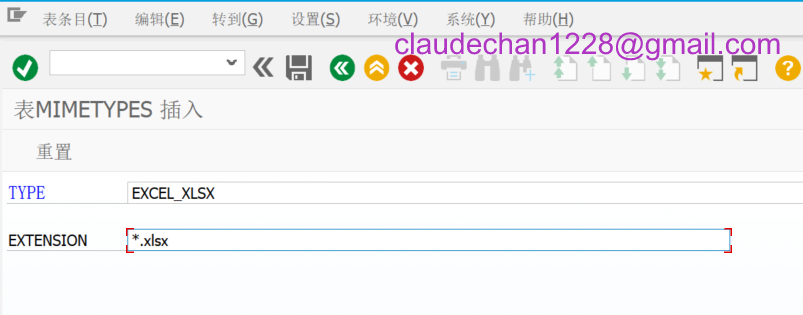

image-20241202201920913

下载附件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
TABLES: sscrfields.

DATA:lv_rc       TYPE i,
     lv_filename TYPE string,
     lv_path     TYPE string,
     lv_fullpath TYPE string,
     lv_objdata  TYPE wwwdatatab.

lv_filename = |SMW0附件下载|.
cl_gui_frontend_services=>file_save_dialog(
  EXPORTING
    window_title           = 'SMW0附件下载'
    default_extension     =  'XLSX'    	"默认保存文件格式
    default_file_name     = lv_filename   "默认文件名称
  CHANGING
    filename              = lv_filename   "默认文件名称
    path                  = lv_path       "文件路径
    fullpath              = lv_fullpath   "文件路径
  EXCEPTIONS
    cntl_error            =  1
    error_no_gui          =  2
    not_supported_by_gui  =  3
    OTHERS                =  4
                                            ).

CHECK lv_fullpath IS NOT INITIAL.

FREE:lv_objdata,lv_rc.

SELECT SINGLE relid objid
  INTO CORRESPONDING FIELDS OF lv_objdata
  FROM wwwdata
  WHERE srtf2 = 0
  AND relid = 'MI'
  AND objid = 'ZTEST_EXCEL'.
IF sy-subrc EQ 0.
  TRANSLATE lv_fullpath TO UPPER CASE.
  REPLACE 'XLS' WITH 'XLSX' INTO lv_fullpath.
  CALL FUNCTION 'DOWNLOAD_WEB_OBJECT'
    EXPORTING
      key         = lv_objdata
      destination = CONV localfile( lv_fullpath )
    IMPORTING
      rc          = lv_rc.
  IF lv_rc EQ 0.
    MESSAGE '模板下载成功' TYPE if_mmpur_constants_general=>msg_success.
  ELSE.
    MESSAGE '模板下载失败' TYPE if_mmpur_constants_general=>msg_success DISPLAY LIKE if_mmpur_constants_general=>msg_error.
  ENDIF.
ELSE.
ENDIF.
